EN12735 Air Conditioning Low Fin Inner Grooved Copper Tube

Product Categories

transense copper

Contact Now

EN12735 Air Conditioning Low Fin Inner Grooved Copper Tube

Ask Lasest Price
Brand Name :	Transense
Model Number :	CU-DHP
Certification :	Rohs;ISO9001;ISO14001;ISO45001;PED4.3
Price :	USD LME Cu + Fabrication cost
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	400 ton one Month
Delivery Time :	3-4 weeks

Add to Cart

Product Details
Company Profile

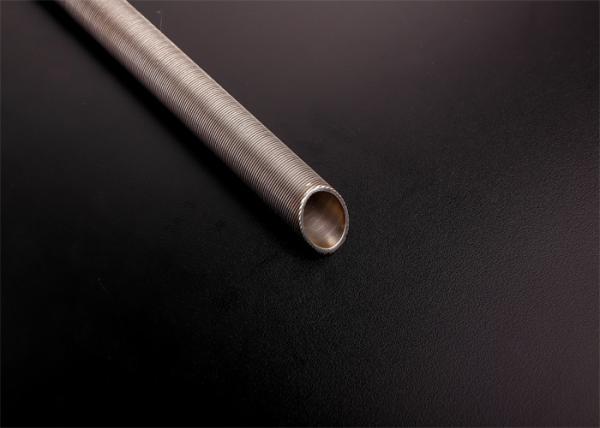

EN12735 Air Conditioning Low Fin Inner Grooved Copper Tube

Low Fin Inner Grooved Copper Tube For Air Conditioning Pancake For All Copper Tube

High temperature. Used to make heat transfer equipment (such as condenser, etc.). It is also used in oxygen - making equipment to assemble cryogenic piping. Small diameter copper tubes are often used to transport pressurized liquids (such as lubricating systems, oil pressure systems, etc.) and pressure gauges for instrumentation.The copper tue and pipe has a strong and corrosion-resistant property, and it is the first choice for modern contractors to install the plumbing, heating and cooling pipes in all residential commercial buildings.

Inner-grooved Tube Application fields

suit to long production runs for industrial applications and available in ultrathin walls,Inner-grooved Tube mainly used for air conditioning and refrigeration, heat exchanger.

Product name: Inner Grooved Tube For Handling Of Medical Gases

Nominal Size	Outer diameter	Bottom wall thickness	Fin height	Apex angle	Helix angle	Fin number	Unit weight
Nominal Size	mm	mm	mm	°	°	N	g/m
5*0.20+0.14-18°	5.00	0.20	0.14	20	18	40	33
7*0.20+0.10-18°	7.00	0.20	0.10	40	18	65	47
7*0.23+0.10-30°	7.00	0.23	0.10	40	30	60	48
7*0.23+0.13-35°	7.00	0.23	0.13	10	35	65	48.5
7*0.24+0.18-18°	7.00	0.24	0.18	15	18	50	54
7*0.25+0.18-18°	7.00	0.25	0.18	40	18	50	57
7*0.30+0.15-18°	7.00	0.30	0.15	40	18	65	64
7.94*0.24+0.18-18°	7.94	0.24	0.18	40	18	50	60
7.94*0.40+0.18-18°	7.94	0.40	0.18	30	18	60	95
9.52*0.27+0.16-18°	9.52	0.27	0.16	30	18	60	81
9.52*0.41+0.20-18°	9.52	0.41	0.20	30	18	60	116
9.52*0.50+0.15-18°	9.52	0.50	0.15	30	18	60	138
9.52*0.50+0.20-18°	9.52	0.50	0.20	50	18	60	140

EN12735 Air Conditioning Low Fin Inner Grooved Copper Tube
