Dedicated to providing customers with a full range of special copper tubes solutions
4 Years
| Ask Lasest Price | |
| Brand Name : | Transense |
| Model Number : | CU-DHP;C12000 |
| Certification : | Rohs |
| Price : | USD LME Cu + Fabrication cost |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 400 Tons one month |
| Delivery Time : | 3-4 weeks |

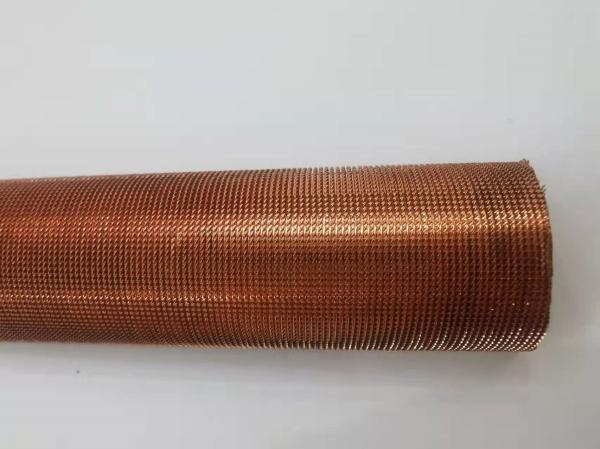

Condenser Tube for central air-conditioner centrifuge,shell heat exchanger
Product Description
Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.The Process of Copper Condenser Tube is Extruded processes (Rolling).Copper Condenser Tube will pass 100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube is available according to drawings and/or samples.Copper condenser tubes are sold well in U.S.A, Germany, Australia etc.
Application
Copper condenser tube especially suitable for central air-conditioner centrifuge, water-cooled screw chilled water units, the shell heat exchanger, heat exchanger with phase transition.Copper condenser tubes are Widely used in petroleum industry, petrochemical industry, metallurgical industry, power industry, food, maritime,home appliances such as refrigerator and air-condition, automobile industry etc.

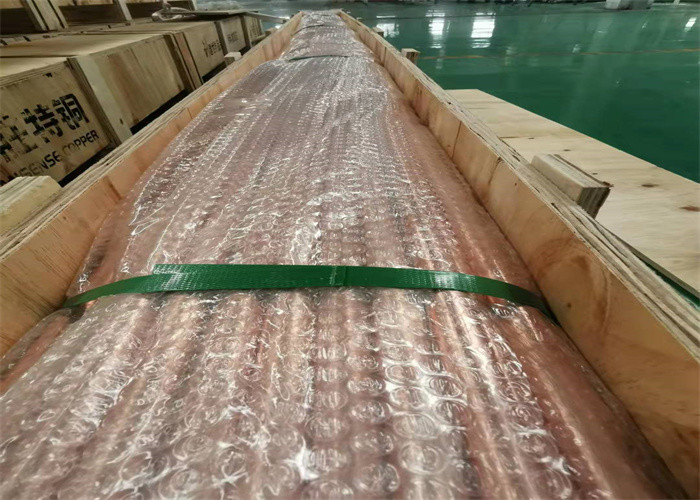

Packing of copper condenser tube Outside: Plywood sea-worthy case or pallet.
| Copper Condenser Tube |
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 25.4 | 25.15 | 0.635 | 0.56 | 0.4 | 0.0798 | 0.3098 | 0.0725 | 0.1202 |
|
|
