| Brand Name : | Transense |
| Model Number : | CU-DHP;C12000;C11000 |
| Certification : | Rohs;ISO9001;ISO14001;ISO45001;PED4.3 |
| Price : | USD LME Cu + Fabrication cost |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 400 Tons one month |
| Delivery Time : | 3-4 weeks |
Condenser Tube used to transport pressurized liquids
Product Description

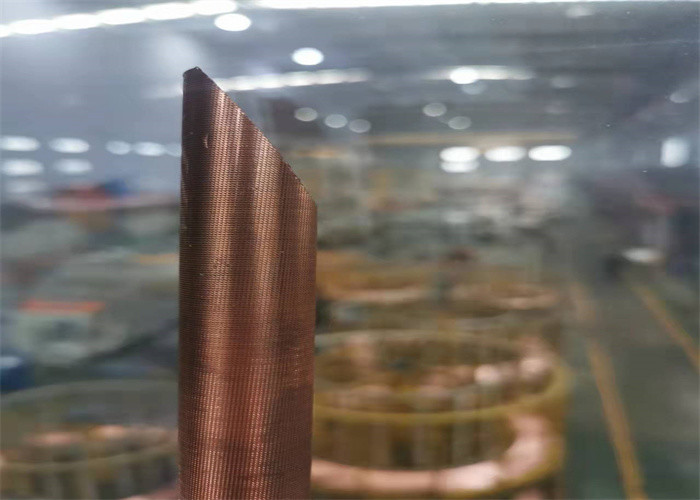

Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.The Process of Copper Condenser Tube is Extruded processes (Rolling).
Application
Copper condenser tube used to make heat transfer equipment (such as condenser, etc.). It is also used in oxygen - making equipment to assemble cryogenic piping. Small diameter copper tubes are often used to transport pressurized liquids (such as lubricating systems, oil pressure systems, etc.) and pressure gauges for instrumentation.T
Packing of copper condenser tube Outside: Plywood sea-worthy case or pallet.
| Copper Condenser Tube |
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 12.7 | 12.65 | 0.6 | 0.5 | 0.2 | 0.0399 | 0.1101 | 0.0348 | 0.0433 |
| 2 | 15.88 | 15.7 | 0.635 | 0.56 | 0.3 | 0.0499 | 0.1733 | 0.0429 | 0.0625 |
| 3 | 19.05 | 18.85 | 0.635 | 0.56 | 0.35 | 0.0598 | 0.2282 | 0.0529 | 0.0858 |
| 4 | 19.05 | 18.85 | 0.711 | 0.63 | 0.35 | 0.0598 | 0.2387 | 0.0526 | 0.0858 |
| 5 | 19.05 | 18.85 | 0.889 | 0.8 | 0.35 | 0.0598 | 0.2482 | 0.0523 | 0.0852 |
|
|
