| Brand Name : | Transense |
| Model Number : | CU-DHP;C12000;C11000 |
| Certification : | Rohs;ISO9001;ISO14001;ISO45001;PED4.3 |
| Price : | USD LME Cu + Fabrication cost |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 400 Tons one month |
| Delivery Time : | 3-4 weeks |
Condenser Tube For Refrigeration And Climate Control Systems
Product Description

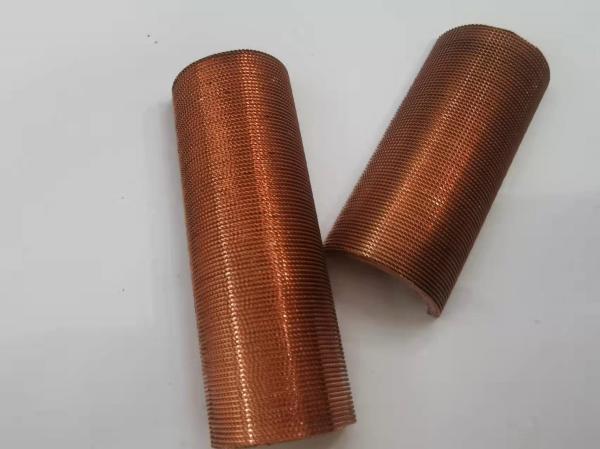

Copper condenser tube,specially designed for the condenser, the
sharp ridges on the radial and axial outside finned section of the
tube destroy the surface tension of gas, so as to make the
condensing liquid dripping. The Process of Copper Condenser Tube is Extruded processes (Rolling).Copper Condenser Tube will pass 100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube is available according to drawings and/or samples.
Application
Copper condenser tube especially suitable for heating systems, Ventilation systems, Refrigeration and climate
control systems, Mechanical engineering, Automotive manufacturing
and Chemicals and pertrochemical and power plant technology.Copper condenser tubes are Widely used in petroleum industry, petrochemical industry,
metallurgical industry, power industry, food, maritime,home
appliances such as refrigerator and air-condition, automobile
industry etc.
Packing of copper condenser tube Outside: Plywood sea-worthy case or pallet.
| Copper Condenser Tube |
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 15.88 | 15.7 | 0.635 | 0.56 | 0.3 | 0.0499 | 0.1733 | 0.0429 | 0.0625 |
| 2 | 19.05 | 18.85 | 0.635 | 0.56 | 0.35 | 0.0598 | 0.2282 | 0.0529 | 0.0858 |
|
|
