| Brand Name : | Transense |
| Model Number : | CU-DHP;C12000 |
| Certification : | Rohs;ISO9001;ISO14001;ISO45001;PED4.3 |
| Price : | USD LME Cu + Fabrication cost |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 200 Tons one month |
| Delivery Time : | 3-4 weeks |

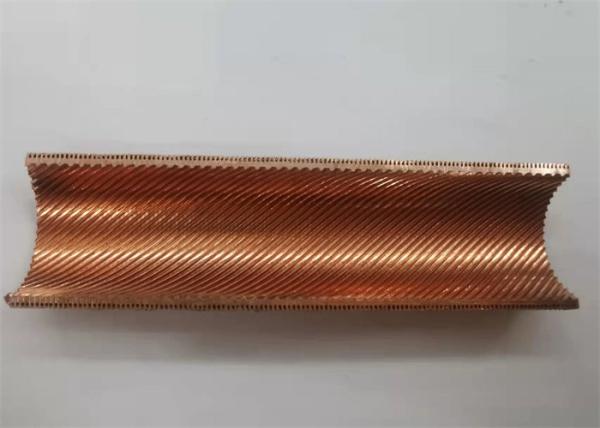

Evaporator Tube used for shell heat exchanger
Product Description
The heat exchanes efficiency is enhanced by the special design Furthermore, enhancement of the inside surface of the evaporator tube reduce forming the thermal resistance on the inside surface of tube and the heat exchange efficiency is improved a lot. This structure of evaporator tube improves the density of the core of the vaporization and promotes the heat transfer effect of the boiling.Optimized inner to outer surface ratio.According to the thermal characteristics of the evaporator, the designed evaporator can reduce the volume of the evaporator, reduce the number of pipes used, reduce the copper consumption and the manufacturing cost of the evaporator, and reduce the energy consumption in operation.
Application
Evaporator tubes suitable for full night or falling film evaporators.The evaporator tube especially suitable for flooded evaporator in the shell heat exchanger.
| Product name:Evaporator tube | |||||||||
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 19.05 | 18.85 | 0.635 | 0.56 | 0.38 | 0.0598 | 0.2056 | 0.0529 | 0.0901 |
|
|
