Evaporator Tube suitable for the central air-conditioner centrifuge
Product Description

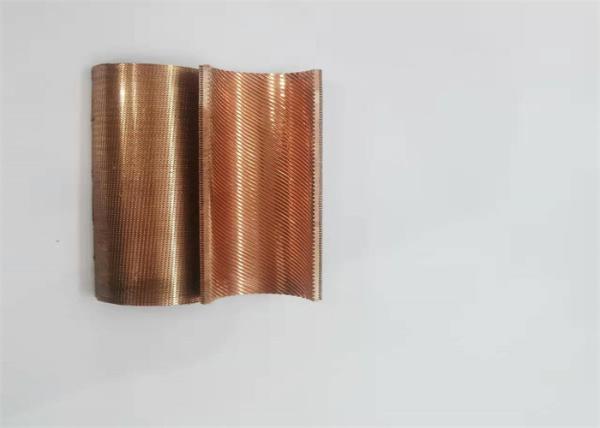

Specially designed finned section, which form evaporation core in the flooded evaporator during the evaporating and help accelerate the evaporation. Furthermore, enhancement of the inside surface of the evaporator tube reduce forming the thermal resistance on the inside surface of tube and the heat exchange efficiency is improved a lot.The surface of the evaporator tube is densely covered with micropores, and the lower part of the evaporating hole is connected with a groove.The copper tube with low fin used in evaporative cooler, which is a device that cools air through the evaporation of water. Evaporative cooling differs from typical air conditioning systems using vapor-compression or absorption refrigeration cycles.
Application
Evaporator tubes suitable for full night or falling film evaporators.The evaporator tube especially suitable for flooded evaporator in the central air-conditioner centrifuge, water-cooled screw chilled water units, the shell heat exchansger.
| Product name:Evaporator tube | |||||||||
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 25.4 | 25.25 | 0.635 | 0.56 | 0.4 | 0.0798 | 0.2783 | 0.0729 | 0.1219 |
|
|
