Dedicated to providing customers with a full range of special copper tubes solutions
4 Years
| Ask Lasest Price | |
| Brand Name : | Transense |
| Model Number : | C10100 |
| Certification : | Rohs |
| Price : | USD LME Cu + Fabrication cost |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 200 Tons one month |
| Delivery Time : | 3-4 weeks |

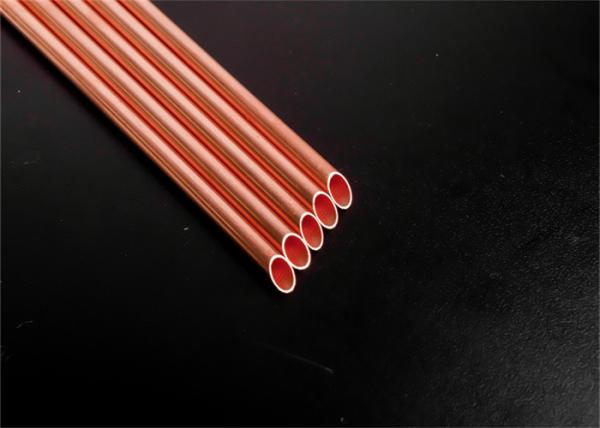

Oxygen-Free Inner Grooved Copper Tube For Electricians
Product description
C10100 Grooved heat pipe copper tube has good electrical and thermal conductivity, corrosion resistance and processing properties, it can be welded and brazed. Impurities containing low electrical and thermal conductivity are small, and trace oxygen has little effect on electrical conductivity, thermal conductivity and processing properties, but it is easy to cause "hydrogen disease" .C10100 Grooved heat pipe copper tube a smooth outer surface and a grooved inner surface. This ensures a higher heat exchange effciency than traditional copper coils. Our grooved heat pipe copper tube undergo a strict eddy-current and performance test to ensure the quality customers have some to expect from us.
Application
For machinery,electricians,etc.
Packing of Grooved Heat Pipe:coils and wooden cases
| Product name:Grooved Heat Pipe |
| Nominal Size | Outer diameter | Bottom wall thickness | Fin height | Apex angle | Total wall thickness | Fin number | Unit weight |
| mm | mm | mm | ° | mm | N | g/m | |
| 3*0.25+0.15 | 3 | 0.25 | 0.15 | 15 | 0.40 | 31/28/55/40 | 20.8 |
| 3*0.30+0.10 | 3 | 0.30 | 0.10 | 10 | 0.40 | 80 | 31 |
| 4*0.30+0.25 | 4 | 0.30 | 0.25 | 10 | 0.55 | 55 | 42 |
| 6*0.20+0.05 | 6 | 0.20 | 0.05 | 10 | 0.25 | 110 | 35 |
| 6*0.20+0.10 | 6 | 0.20 | 0.10 | 10 | 0.30 | 80/100/110 | 40 |
| 6*0.20+0.20 | 6 | 0.20 | 0.20 | 10 | 0.40 | 65/30 | 49 |
| 6*0.25+0.10 | 6 | 0.25 | 0.10 | 10 | 0.35 | 100/80 | 47 |
| 6*0.28+0.12 | 6 | 0.28 | 0.12 | 10 | 0.40 | 100 | 54 |
| 6*0.30+0.25 | 6 | 0.30 | 0.25 | 10 | 0.55 | 55 | 54 |
| 8*0.20+0.10 | 8 | 0.20 | 0.10 | 10 | 0.30 | 110 | 59 |
| 8*0.25+0.10 | 8 | 0.25 | 0.10 | 10 | 0.35 | 110 | 51 |
| 8*0.25+0.20 | 8 | 0.25 | 0.20 | 10 | 0.45 | 68 | 65 |
| 8*0.25+0.25 | 8 | 0.25 | 0.25 | 10 | 0.50 | 68 | 68 |
| 8*0.28+0.12 | 8 | 0.28 | 0.12 | 10 | 0.40 | 135 | 72 |
| 8*0.30+0.25 | 8 | 0.30 | 0.25 | 10 | 0.55 | 68/80 | 79 |
|
|
