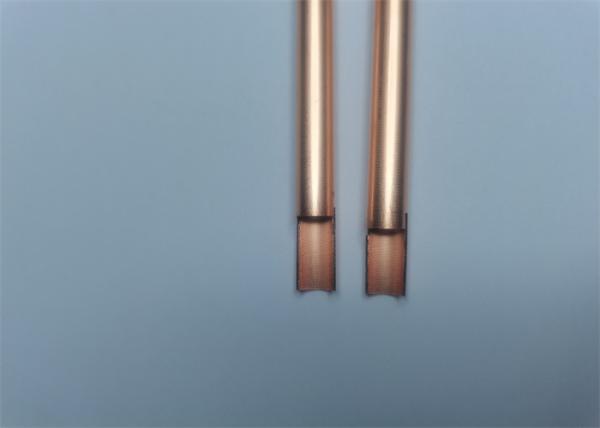

Oxygen-Free Inner Red Grooved Copper Tube Used In Industrial Computers
Product description
C10100 Grooved heat pipe copper tube has good electrical and thermal conductivity, corrosion resistance and processing properties. Impurities containing low electrical and thermal conductivity are small, and trace oxygen has little effect on electrical conductivity, thermal conductivity and processing properties, but it is easy to cause "hydrogen disease" .C10100 Grooved heat pipe copper tube a smooth outer surface and a grooved inner surface. Our grooved heat pipe copper tube undergo a strict eddy-current and performance test to ensure the quality customers have some to expect from us.
Application
CPU heat sink, video card, motherboard, power supply, occurrence, northbridge, MOS tube radiator, etc.
| Product name:Grooved Heat Pipe |
| Nominal Size | Outer diameter | Bottom wall thickness | Fin height | Apex angle | Total wall thickness | Fin number | Unit weight |
| mm | mm | mm | ° | mm | N | g/m | |
| 3*0.25+0.15 | 3 | 0.25 | 0.15 | 15 | 0.40 | 31/28/55/40 | 20.8 |
| 3*0.30+0.10 | 3 | 0.30 | 0.10 | 10 | 0.40 | 80 | 31 |
| 4*0.30+0.25 | 4 | 0.30 | 0.25 | 10 | 0.55 | 55 | 42 |
| 6*0.20+0.05 | 6 | 0.20 | 0.05 | 10 | 0.25 | 110 | 35 |
| 6*0.20+0.10 | 6 | 0.20 | 0.10 | 10 | 0.30 | 80/100/110 | 40 |
| 6*0.20+0.20 | 6 | 0.20 | 0.20 | 10 | 0.40 | 65/30 | 49 |
| 8*0.20+0.10 | 8 | 0.20 | 0.10 | 10 | 0.30 | 110 | 59 |
| 8*0.25+0.10 | 8 | 0.25 | 0.10 | 10 | 0.35 | 110 | 51 |
| 8*0.25+0.20 | 8 | 0.25 | 0.20 | 10 | 0.45 | 68 | 65 |
| 8*0.25+0.25 | 8 | 0.25 | 0.25 | 10 | 0.50 | 68 | 68 |
| 8*0.28+0.12 | 8 | 0.28 | 0.12 | 10 | 0.40 | 135 | 72 |
| 8*0.30+0.25 | 8 | 0.30 | 0.25 | 10 | 0.55 | 68/80 | 79 |
|
|
