    Non Alloy Copper Condenser Tube

    Ask Lasest Price
    Brand Name : Transense
    Model Number : CU-DHP;C12000
    Certification : Rohs
    Price : USD LME Cu + Fabrication cost
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 400 Tons one month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    Non Alloy Copper Condenser Tube

    CU-DHP Copper Condenser Tube For Refrigerant Condenser Application


    Product Description

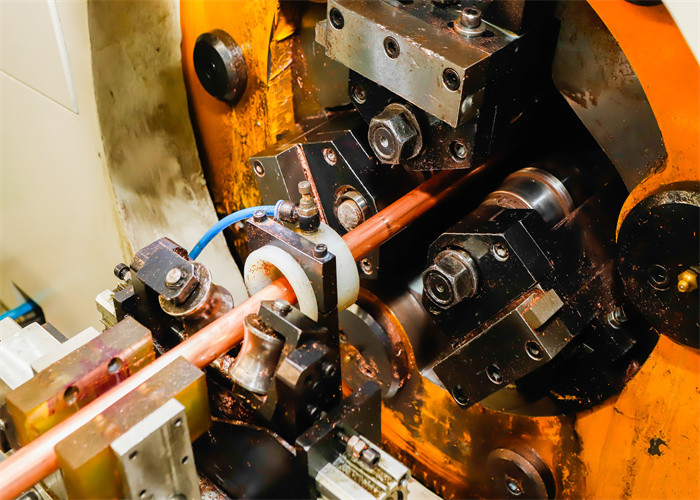

    Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.The Process of Copper Condenser Tube is Extruded processes (Rolling).Copper Condenser Tube will pass 100% Eddy Current Testing, 100% hydraulic Testing.OEM of copper condenser tube is available according to drawings and/or samples.

    Advantages of copper condenser tube

    1. Optimized heat exchange performance of raw material with extruding process

    2. Compact design consuming less assembling space

    3. Flexible for customized design after soft annealing

    4. Copper is a hygienic and antimicrobial material for use in drink water systems

    5. Tin plating for both inside and outside surface is possible, if requested

    6. Easier to stock after surface treatment


    Copper Condenser Tube
    ItemLight tubeWing fragment
    O.D.O.D.Wall Thicknessminimum Wall ThicknessRidge HeightNominal outside surface areaactualoutside surface areaNominal inside surface areaNominal inside surface area
    mmmmmmmmmm㎡/m㎡/m㎡/m㎡/m
    115.8815.70.6350.560.30.04990.17330.04290.0625
    219.0518.850.6350.560.350.05980.22820.05290.0858
    319.0518.850.7110.630.350.05980.23870.05260.0858
    419.0518.850.8890.80.350.05980.24820.05230.0852
