| Brand Name : | Transense |
| Model Number : | CU-DHP;C12000;C11000 |
| Certification : | Rohs |
| Price : | USD LME Cu + Fabrication cost |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 400 Tons one month |
| Delivery Time : | 3-4 weeks |

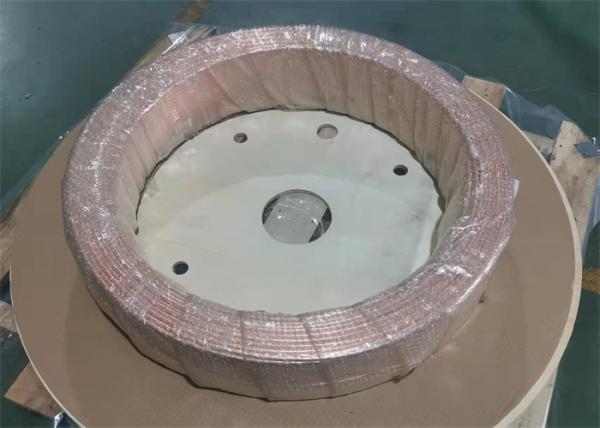

Cu-DHP C12000 Copper Seamless Level Wound Coil Tubes For HVAC Field
Product Description
The seamless coil tube (Level Wound Coil)produced by our company is mainly used in the connection of heat exchangers and pipeline systems in the air conditioning and refrigeration industries.The dimension of :Level Wound Coil could be customizable, ensuring customers to get the right copper tube for their needs.Level Wound Coil (LWC) Copper Tubes feature minimum copper content of 99.9% as per IS-191 and are available in Forged / Hot Rolled / Extruded as well as Cold Worked finish in different dimensions and specifications. :Level Wound Coils are also available in hard, half-hard as well as soft conditions. As the tubes comprise de-oxidized copper, it is not affected through reducing atmosphere.
Application
Level Wound Coil used in the connection of heat exchangers and pipeline systems in the air conditioning and refrigeration industries.
| Size of smooth Level Wound Coil | ||||||||||||
| 0.15 | 0.2 | 0.28 | 0.3 | 0.35 | 0.42 | 0.5 | 0.61 | 0.76 | 0.95 | 1.2 | 1.5 | |
| 4 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |||||
| 4.75 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||||
| 5 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| 6 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| 6.35 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| 7 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| 7.94 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| 8 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| 9.52 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| 10 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||
| 12.7 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |||
| 15.88 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ||||
| 19.05 | ■ | ■ | ■ | ■ | ■ | ■ | ||||||
| 22 | ■ | ■ | ■ | ■ | ■ | ■ | ||||||
|
|
