    GB/T19447 Heat Exchanger Tube OD 12.7MM For Condenser Washed Surface

    Ask Lasest Price
    Brand Name : Transense
    Model Number : CU-DHP;C12000
    Certification : Rohs;ISO9001;ISO14001;ISO45001
    Price : USD LME Cu + Fabrication cost
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 400 Tons one month
    Delivery Time : 3-4 weeks
    • Product Details
    • Company Profile

    GB/T19447 Heat Exchanger Tube OD 12.7MM For Condenser Washed Surface

    Heat Exchanger Tube Used In Oxygen - Making Equipment To Assemble Cryogenic Piping


    Product Description

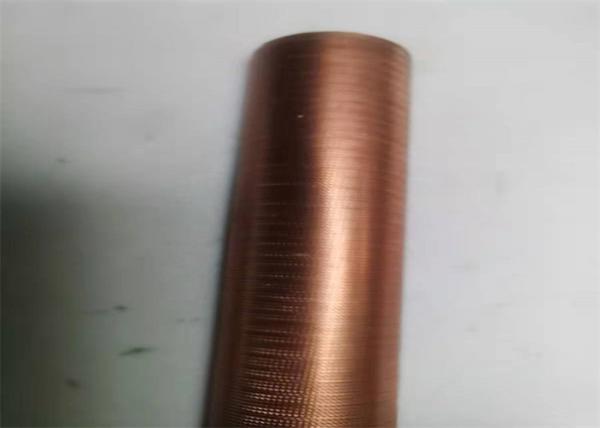

    Copper condenser tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. The tube has high heat transfer coefficient and condensing efficiancy.The Process of Copper Condenser Tube is Extruded processes (Rolling).

    Application


    Copper condenser tube especially suitable for central air-conditioner centrifuge, water-cooled screw chilled water units, the shell heat exchanger, heat exchanger with phase transition.Copper condenser tubes are Used to make heat transfer equipment (such as condenser, etc.). It is also used in oxygen - making equipment to assemble cryogenic piping. Small diameter copper tubes are often used to transport pressurized liquids (such as lubricating systems, oil pressure systems, etc.) and pressure gauges for instrumentation.


    Heat Exchanger Tube Used In Oxygen - Making Equipment To Assemble Cryogenic Piping
    ItemLight tubeWing fragment
    O.D.O.D.Wall Thicknessminimum Wall ThicknessRidge HeightNominal outside surface areaactualoutside surface areaNominal inside surface areaNominal inside surface area
    mmmmmmmmmm㎡/m㎡/m㎡/m㎡/m
    112.712.650.60.50.20.03990.11010.03480.0433
    215.8815.70.6350.560.30.04990.17330.04290.0625
    319.0518.850.6350.560.350.05980.22820.05290.0858
    419.0518.850.7110.630.350.05980.23870.05260.0858

    GB/T19447 Heat Exchanger Tube OD 12.7MM For Condenser Washed SurfaceGB/T19447 Heat Exchanger Tube OD 12.7MM For Condenser Washed Surface
