| Brand Name : | Transense |
| Model Number : | CU-DHP |
| Certification : | Rohs;ISO9001;ISO14001;ISO45001;PED4.3 |
| Price : | USD LME Cu + Fabrication cost |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 400 Tons one month |
| Delivery Time : | 3-4 weeks |

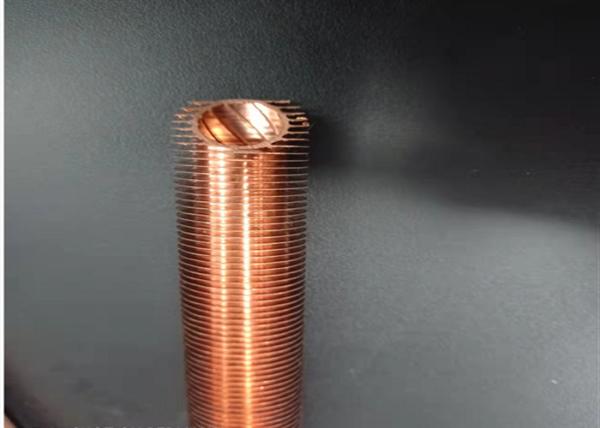

CU-DHP Heat Exchanger Tube Used In Heat Exchangers For Cooling
Product Description
Heat Exchanger Tube,specially designed for the condenser, the sharp ridges on the radial and axial outside finned section of the tube destroy the surface tension of gas, so as to make the condensing liquid dripping. Heat Exchanger Tube has high heat transfer coefficient and condensing efficiancy.OEM of Heat Exchanger Tube is available according to drawings and/or samples.
Application
Heat Exchanger Tube especially suitable for central air-conditioner centrifuge, water-cooled screw chilled water units, the shell heat exchanger, heat exchanger with phase transition.Copper condenser tubes areare mostly used in heat exchangers for applications for cooling and heating of liquid and gas, including water, oil, steam and air as well as for condensation, evaporation.
| CU-DHP Heat Exchanger Tube Used In Heat Exchangers For Cooling |
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 12.7 | 12.65 | 0.6 | 0.5 | 0.2 | 0.0399 | 0.1101 | 0.0348 | 0.0433 |
| 2 | 15.88 | 15.7 | 0.635 | 0.56 | 0.3 | 0.0499 | 0.1733 | 0.0429 | 0.0625 |
|
|
